Every manufactured product, whether it is plastic packaging, metal fasteners, rubber seals or textile fabrics, must withstand a certain amount of force during its service life. Products are pulled, stretched, bent and loaded repeatedly in real conditions. If the material fails prematurely, it leads not only to financial loss but also to serious safety risks. To prevent such failures, manufacturers depend on a laboratory testing instrument called the Tensile Strength Tester, also known as a Tensile Testing Machine or Universal Testing Machine.
A Tensile Strength Tester is designed to measure how a material behaves when it is subjected to a pulling force. The test reveals crucial mechanical properties such as tensile strength, elongation, yield strength and modulus of elasticity. These properties form the backbone of material selection, quality control and product development across almost every industry.
Understanding Tensile Strength
Tensile strength is defined as the maximum stress a material can withstand while being stretched before it breaks. During a tensile test, a sample is held firmly between two grips and pulled apart at a constant speed. As the force increases, the material initially deforms elastically, meaning it returns to its original shape if the load is removed. Beyond a certain point, the material enters the plastic deformation zone where the change becomes permanent. Finally, the sample fractures.
The data generated during this process is plotted as a stress-strain curve, which provides deep insight into the mechanical behaviour of the material. From this curve, engineers can identify yield strength, ultimate tensile strength and percentage elongation, all of which are vital for product design.
Why Tensile Testing is Essential
In modern manufacturing, consistency is everything. Two batches of the same raw material may look identical, yet behave completely differently under load. Tensile testing ensures that every batch meets predefined mechanical standards. Without this test, manufacturers would be forced to rely on visual inspection or supplier claims, which is extremely risky.
Tensile testing also plays a major role in research and development. When a new material is introduced, it must be tested thoroughly to understand how it behaves under different loads. This helps engineers choose the right material for specific applications, such as high-impact packaging, automotive components or medical devices.
Working Principle of a Tensile Strength Tester
The working principle of a Tensile Strength Tester is based on the controlled application of tensile force on a test specimen. The machine consists of a rigid load frame, a movable crosshead, precision load cells and advanced digital controllers.
The specimen is clamped between the upper and lower grips. When the test starts, the crosshead moves at a predetermined speed, pulling the specimen apart. The load cell continuously measures the applied force, while an extensometer or encoder measures the elongation. The machine records these values in real time and generates a complete stress-strain curve.
Modern tensile testers are fully computerized and offer programmable test parameters, automatic result calculation and detailed data reporting.
Types of Tensile Strength Testers
Tensile testing machines are available in different configurations depending on application and load capacity. Single-column machines are commonly used for light materials such as films, sheets and textiles. Dual-column machines are preferred for heavy-duty applications involving metals, rubber and high-strength plastics.
Some machines are designed exclusively for tensile testing, while others are Universal Testing Machines capable of performing compression, bending, peel and shear tests in addition to tensile tests.
Applications Across Industries
Tensile Strength Testers are used extensively in the plastic industry to test films, pipes, moulded parts and sheets. In the textile industry, they are used to evaluate yarn, fabric and nonwoven materials. Rubber manufacturers use tensile testing to check elasticity and strength of seals and gaskets. Metal industries rely on tensile tests to verify the mechanical properties of rods, wires and structural components.
Packaging companies also use tensile testing to assess the strength of laminates, flexible packaging films and adhesive bonds.
Advantages of Using a Tensile Strength Tester
The primary advantage of tensile testing is quality assurance. By identifying weak batches early, manufacturers can avoid large-scale production failures. The test also helps in process optimization by correlating material properties with machine performance.
Another significant advantage is compliance with international standards such as ASTM, ISO and BIS. Tensile test reports are often required by customers, auditors and regulatory authorities as proof of quality.

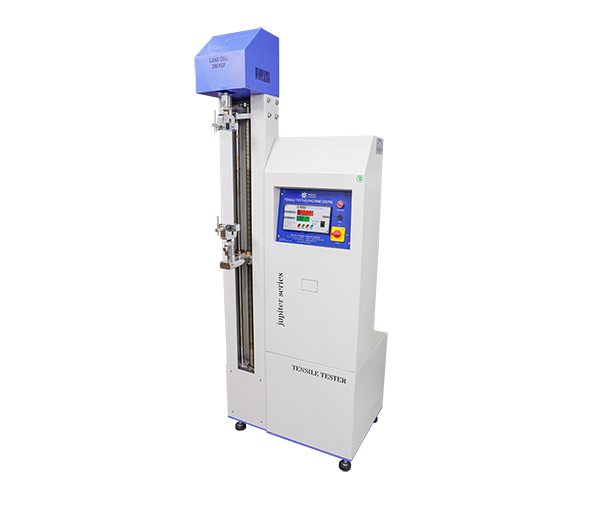

Features of Presto Tensile Strength Testers
Presto Tensile Strength Testers are designed for high accuracy, durability and ease of operation. They are equipped with precision load cells, smooth drive mechanisms and intuitive software that makes testing fast and reliable. The machines can be customized with different grips and fixtures to suit a wide range of materials.
Presto also offers excellent after-sales service, ensuring that the machines perform consistently throughout their service life.
Impact on Product Performance
By performing regular tensile testing, manufacturers gain complete control over material behaviour. This leads to better product design, improved safety margins and enhanced customer satisfaction. Products that pass tensile testing are less likely to fail in the field, which protects brand reputation and reduces warranty claims.
Conclusion
The Tensile Strength Tester is a cornerstone of modern quality control laboratories. It transforms raw data into actionable insights that drive better manufacturing decisions. Without tensile testing, manufacturers would be operating in the dark, relying on assumptions rather than facts.
Call to Action
Ensure that every product you manufacture meets the highest strength standards with the Presto Tensile Strength Tester.
